Cloud Functions is a service on Google Cloud Platform that supports serverless deployments of functions. Much like serverless platforms with App Engine and serverless containers with Cloud Run, the infrastructure is hidden and is autoscaled to meet demand. Unlike App Engine and Cloud Run which typically run full applications, Cloud Functions are typically used to perform a single task and are implemented using a limited set of container environments provided by Google.

Previously, rendering of the Guestbook was done in Flask with Jinja templates returning HTML and CSS back to the browser upon each update. Modern, client-side rendering approaches, however, perform the rendering task on the front-end browser, leaving only the Model function to be implemented by the backend server. When split into this architecture, after the browser downloads the initial web content, the backend is then only accessed via a REST API to update Model state. Serverless functions are often used to implement REST APIs. As our Guestbook application is quite minimal, having only two functions, it can easily be adapted to this style of architecture.

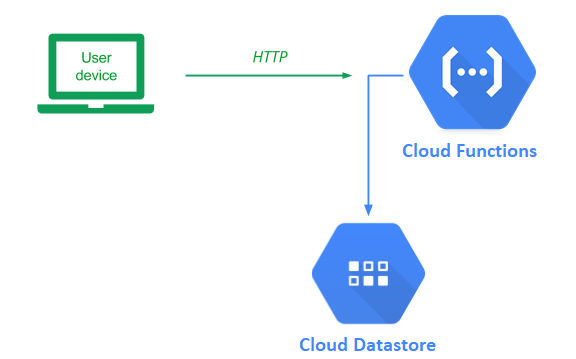

To demonstrate this, we will now take our guestbook application and break it into a frontend and a backend and then create an API for directly accessing the Guestbook model backend. Our backend REST API will be done serverlessly on GCP using Cloud Functions while the frontend will be a simple webpage that calls out to the REST API to POST and GET guestbook entries. Note that because our Guestbook is a public API, we do not employ GCP's API Gateway to manage access to it in this lab.

To begin with, visit the code in Cloud Shell

cd guestbook-src/06_gcp_restapi_cloudfunctions

The gbmodel code is the same.

The main code change in this version is the removal of the server-side rendering code that generates HTML for the site. This has been replaced with a single file (main.py) that Cloud Function looks for to implement our two endpoints. The first endpoint is named entries and supports code for handling GET requests as shown below. It calls our Model's select() function to retrieve all of the entries in the Guestbook model. In previous instantiations, the web application took the results returned from the model (as a list of lists) and then rendered them in HTML using Jinja2. For the REST API, rather than return HTML, we instead need to return an object in Javascript Object Notation (JSON). The code takes the list of lists and creates a list of dictionaries (entries) that is then converted into JSON (json.dumps) and sent back to the client (make_response) with an appropriate response type (application/json).

main.py

from flask import make_response, abort
import gbmodel
import json
import functions_framework

@functions_framework.http
def entries(request):
    """ Guestbook API endpoint
        :param request: flask.Request object
        :return: flask.Response object (in JSON), HTTP status code
    """
    model = gbmodel.get_model()
    if request.method == 'GET':
        entries = [dict(name=row[0], email=row[1], signed_on=row[2].isoformat(), message=row[3] ) for row in model.select()]
        response = make_response(json.dumps(entries))
        response.headers['Content-Type'] = 'application/json'
        response.headers['Access-Control-Allow-Origin'] = '*'
        return response, 200

    return abort(403)

CORS aside

The entries function also contains code to handle HTTP OPTIONS request methods.

main.py

    if request.method == 'OPTIONS':
        return handle_cors(), 204

This is to support CORS (cross-origin resource sharing). CORS allows us (as a REST API provider) to restrict which web sites can access our APIs from Javascript. If your Guestbook front-end is hosted by foo.com, the web browser will query our REST API endpoint with a "pre-flight" OPTIONS request to check to see if Javascript code from foo.com is able to access the endpoint. The code for handling the CORS request is below. As the code shows, it simply sets the HTTP response headers to allow all origins '*' to perform the specified method request (in this case, GET). We use the wildcard since we don't know (in this codelab) where the frontend will be served from. If the front-end were served from foo.com, then we could specify 'https://foo.com' for the 'Access-Control-Allow-Origin' header value.

main.py

def handle_cors():
    response = make_response()
    response.headers['Access-Control-Allow-Origin'] = '*'
    response.headers['Access-Control-Allow-Methods'] = 'POST, GET, OPTIONS'
    response.headers['Access-Control-Allow-Headers'] = 'Content-Type'
    response.headers['Access-Control-Max-Age'] = '3600'
    return response

The other endpoint implemented within main.py is named entry. As shown below, the endpoint only supports HTTP POST requests and checks to ensure that a JSON object specifying a Guestbook entry is included in the POST. It then gets the dictionary representation of the JSON object (request.get_json()), validating that all parts of the entry are included (via the all()), before calling the Model's insert()method to insert the entry into the Guestbook

main.py

@functions_framework.http
def entry(request):
    """ Guestbook API endpoint
        :param request: flask.Request object
        :return: flack.Response object (in JSON), HTTP status code
    """
    model = gbmodel.get_model()

    if request.method == 'POST' and request.headers['content-type'] == 'application/json':
        request_json = request.get_json(silent=True)

        if all(key in request_json for key in ('name', 'email', 'message')):
            model.insert(request_json['name'], request_json['email'], request_json['message'])
        else:
            raise ValueError("JSON missing name, email, or message property")
        return handle_cors(), 204

Note that, similar to the prior CORS support in the entries endpoint, we include similar code to handle the HTTP OPTIONS requests on this one.

It is possible to test the cloud function code locally without needing to deploy it. This is done with the help of the functions-framework.

Setup a local virtual environment for your project and install the pip requirements.

You can then run a specific function with:

$ functions-framework --target entries --debug

And access your entries on http://127.0.0.1:8080/entries

We will now deploy our API endpoints. Go back to the source directory containing main.py. The command below deploys the function that has been implemented specifying a Python 3.11 environment. Since Cloud Functions can be triggered by many different kinds of events, not just REST API requests, we must specify an HTTP trigger. In addition, our two functions only require access to Cloud Datastore so we will deploy both using the service account created previously in order to practice least-privileges. (Search for Service account in Google Cloud Console if you did not name it guestbook)

gcloud functions deploy entries --runtime python311 --trigger-http --service-account guestbook@<your_google_clour_project>.iam.gserviceaccount.com

gcloud functions deploy entry --runtime python311 --trigger-http --service-account guestbook@<your_google_clour_project>.iam.gserviceaccount.com

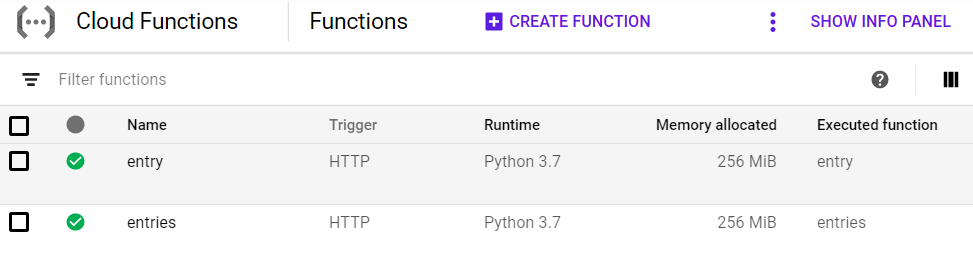

Go to the Cloud Functions console to view the functions.

Then, use the commands below to show the functions' settings along with the URL to access each (httpsTrigger).

gcloud functions describe entries
gcloud functions describe entry

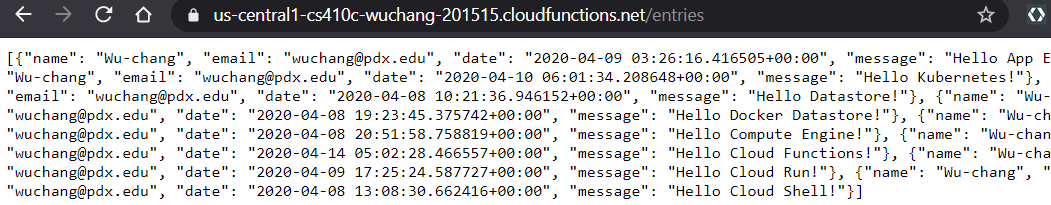

Click on the URL for the REST API's entries endpoint (httpsTrigger) or copy and paste it into the web browser. The request will result in the entire contents of the Guestbook being returned to you as a JSON object by the endpoint.

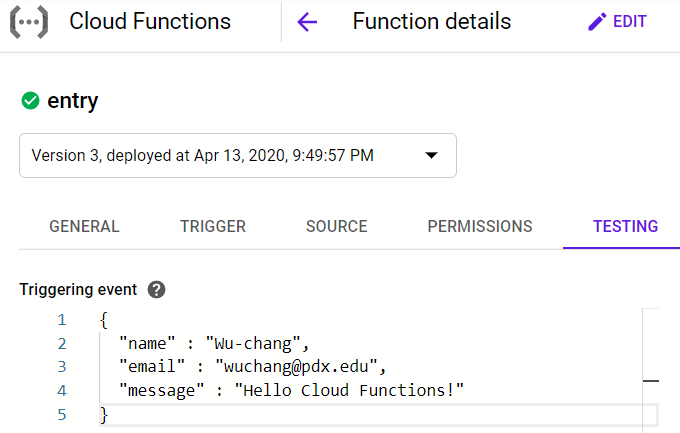

Go back to the Cloud Functions UI and click on the entry endpoint for submitting a new entry into the Guestbook. Then click on "Testing". This will bring you to a page that allows you to interact with the endpoint. We wish to see that the endpoint can properly handle new entries being submitted. To test that the endpoint can properly handle new entries being submitted, format a JSON object using the necessary fields with your name, your e-mail address, and a message of "Hello Cloud Functions!".

Then, click on "Test the function" to send the JSON object via HTTP POST to the API.

Revisit the entries endpoint in the browser. The output should show the entry you've submitted.

REST APIs can be programmatically accessed via any popular language. As we have been using Python for the class, we can do so using its interpreter. On your Ubuntu VM, enter the interpreter:

$ python

Use python3 in linux

Within the interpreter, import the requests package and access the REST API's entries endpoint, saving the response.

import requests
resp = requests.get('https://<region_name>-<project_id>.cloudfunctions.net/entries')

Using the interpreter and the resp object, use Python's print() function to show the following for the response:

• Response HTTP status_code (resp.status_code)
• Response headers (resp.headers)
• Data type of the response headers (using the type()) function of Python
• Response text (resp.text)
• Data type of the response text
• Response represented as a JSON object (resp.json())
• Data type of the response JSON

Then, assign the response JSON to a variable and use the Python interpreter to write a loop that individually prints the name, email, signed_on, and message of the first Guestbook entry returned.

We can also use Python to submit a new Guestbook entry via the REST API. Within the same interpreter session, import the JSON package and create a dictionary containing a Guestbook entry with your name, email, and message of "Hello Cloud Functions from Python Requests!". Note that, in Python, you can create a dictionary using syntax similar to JSON. For example, the snippet my_dict = {'foo':'bar'} creates a dictionary with a single entry with key 'foo' and value 'bar'.

import json
mydict = {
    'name' : 'Demo',
    'email' : '@he-arc.ch',
    'message' : 'Hello from python request',
}

Then, submit a POST request to the API's entry endpoint, passing the dictionary containing the Guestbook entry into the json keyword parameter to the post() method. The request package will convert the dictionary into the JSON format as part of the request.

resp = requests.post('https://<region_name>-<project_id>.cloudfunctions.net/entry', json=my_dict)

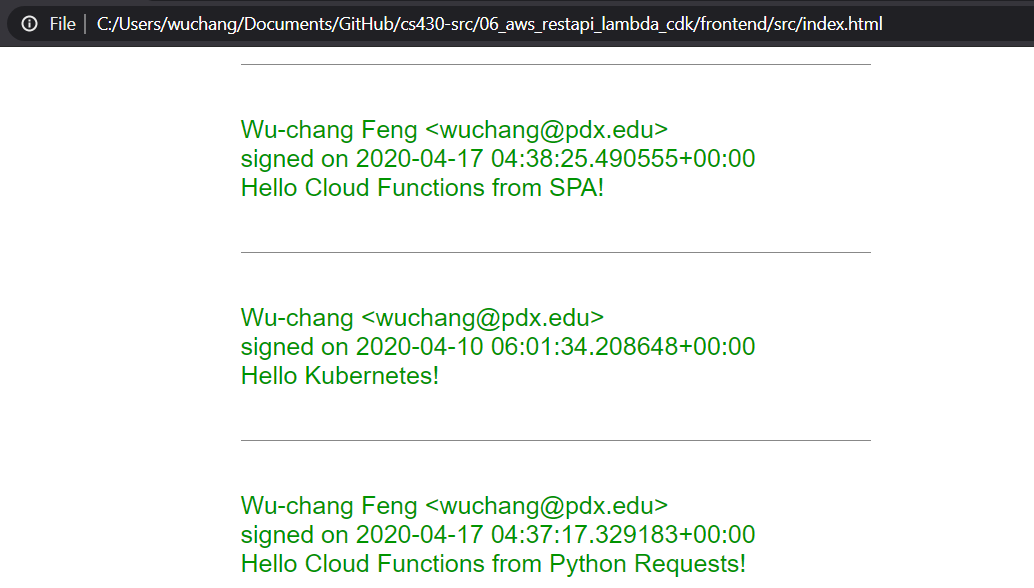

With a single page application (SPA), you download the entire site as a static bundle and then, just like an application, you interact with it seamlessly. As the application needs to send and retrieve data to the backend server, it does so asynchronously using Javascript and HTTP requests to and from the APIs it is programmed to access. There are many examples of single-page applications such as Google Mail and Google Docs.

This version of the Guestbook is implemented in a similar manner. A standard interface to interface with the backend model, our controller and presenter code is able to work with any new models without modification. In this case, one can consider the REST API specification as our new model interface as it standardizes our HTTP queries so that our front-end code does not have to change if we shift backends between AWS and GCP.

Visit the source directory containing the application.

cd guestbook-src/06_gcp_restapi_cloudfunctions/frontend-src

View index.html which contains the application. As the file shows, it is similar to prior versions with two exceptions. The first exception is that it now includes a Javascript file

frontend-src/index.html

   <script src="./static/guestbook.js"></script>

This file will execute code when we submit a new entry and update our page with the response. By operating on the DOM directly, it will allow us to view the results of our submission immediately without reloading the page.

The base page also implements the form used to sign the Guestbook. As the code below shows, each input field is labeled (name, email, message) so that it can be accessed by our Javascript code . In addition, when the "Sign" button is clicked, the sign() function that is defined in guestbook.js will be called (we will bind the listener to the button in the javascript code).

frontend-src/index.html

 <h2>Guestbook</h2>
      <div class="box">
        <label
          ><span>Name:</span><input type="text" name="name" required
        /></label>
        <label><span>Email:</span><input type="email" name="email" /></label>
        <label
          ><span>Message:</span><textarea name="message" required></textarea>
        </label>
        <label><span></span><input type="submit" value="Sign" /></label>
      </div>

Finally, at the bottom of the page is the definition of a

     <h2>Entries</h2>
     <div id="entries"></div>

const baseApiUrl = "<FMI>";

const getEntries = async () => {
  const response = await fetch(baseApiUrl + "entries", {
    headers: {
      Accept: "application/json",
      "Content-Type": "application/json"
    },
    method: "GET"
  });
  const gbentries = await response.json();
  renderEntries(gbentries);
};

const sign = async () => {
  const name = document.querySelector("input[name=name]");
  const email = document.querySelector("input[name=email]");
  const message = document.querySelector("textarea[name=message]");
  const button  = document.querySelector("input[type=submit]");
  button.style.display = "none";

  await fetch(baseApiUrl + "entry", {
    headers: {
      Accept: "application/json",
      "Content-Type": "application/json"
    },
    method: "POST",
    body: JSON.stringify({ name: name.value, email: email.value, message: message.value })
  });
  button.style.display = "block";
  name.value = "";
  email.value = "";
  message.value = "";
  getEntries();
};

const renderEntries = entries => {
  const entriesNode = document.getElementById("entries");

  while (entriesNode.firstChild) {
    entriesNode.firstChild.remove();
  }

  entries.map(entry => {
    const entryNode = document.createElement("section");
    entryNode.classList.add("entry", "box");
    const email = entry.email ? `<${entry.email}>` : "";
    entryNode.innerHTML = `<pre>${entry.message}</pre>
    <header>
      ${ entry.name } ${email}<br>
      <em>signed on ${entry.signed_on}</em>
    </header>`
    entriesNode.appendChild(entryNode);
  });
};

cd guestbook-src/06_gcp_restapi_cloudfunctions/frontend-src

const baseApiUrl = "<FMI>";

gsutil mb gs://restapi-<pnom>

gsutil iam ch allUsers:objectViewer gs://restapi-<pnom>

gsutil cp -r . gs://restapi-<pnom>

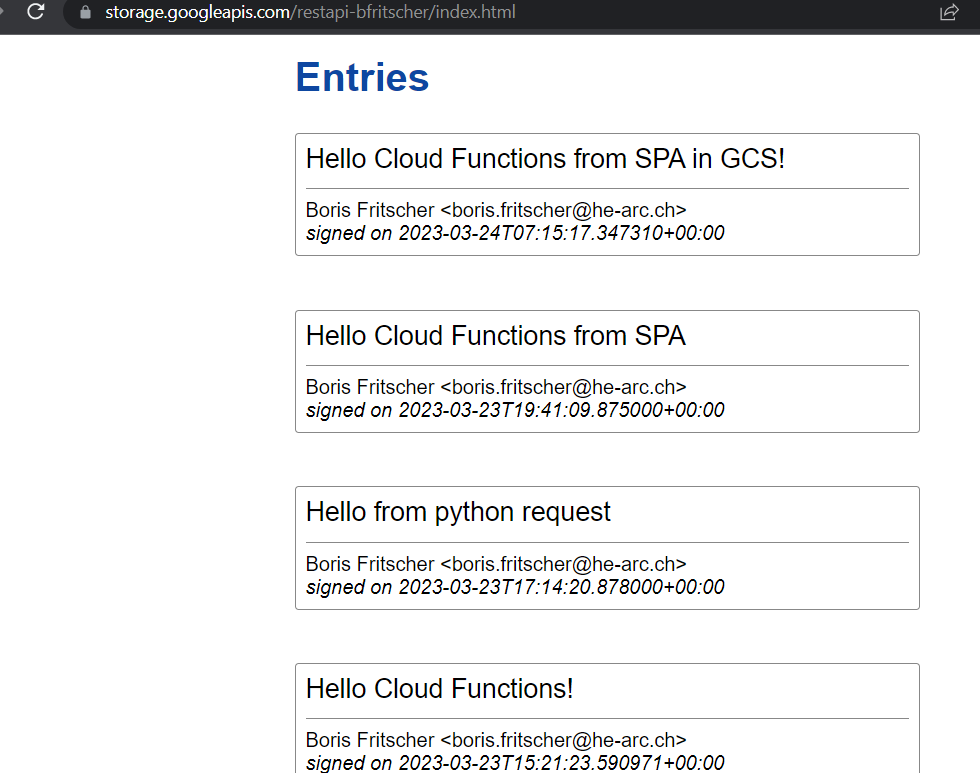

https://storage.googleapis.com/<BucketName>

https://storage.googleapis.com/<BucketName>/index.html

gsutil rm -r gs://restapi-<pnom>
gcloud functions delete entries
gcloud functions delete entry
